The New Benchmark in Wireless Intelligent Control: E860-DTU (8080-400SL30)-V2 Remote Synchronous Switch

Product Overview: A Revolution in Long-Distance Wireless Control

The Ebyte E860-DTU(8080-400SL30)-V2 is a remote synchronous control terminal device based on LoRa technology. It supports 8 digital inputs and 8 relay outputs, enabling precise wireless control and status monitoring of remote devices. Featuring an industrial-grade design, compact size, and easy installation, it is widely applicable in various scenarios requiring wireless remote control.

Core Values:

• Long-range wireless control: Up to 10 km in clear weather.
• Bidirectional data transmission: Supports simultaneous monitoring of 8 inputs and control of 8 outputs.
• Industrial-grade reliability: -40°C to +85°C wide operating temperature range, conformal coating.
• Easy to use: No complex wiring required, quick deployment.

Product Series: Meeting Different Scenario Needs

The E860-DTU series offers a wide range of models to meet the specific needs of different users:

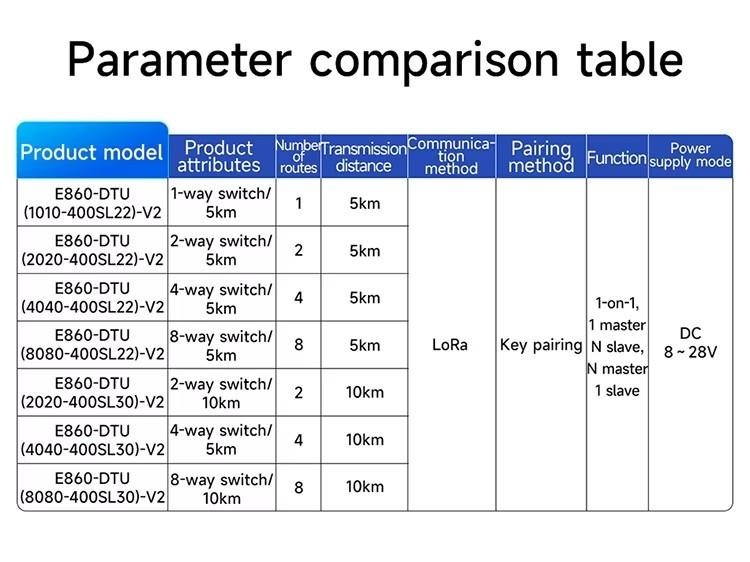

Product Model	Transmission distance	Features	Operating voltage
E860-DTU(8080-400SL30)-V2	10km	8-way DI and 8-way DO switching value synchronous transmission switch	DC 8～28V
E860-DTU(4040-400SL30)-V2	10km	4-way DI and 4-way DO switching value synchronous transmission switch	DC 8～28V
E860-DTU(2020-400SL30)-V2	10km	2-way DI and 2-way DO switching value synchronous transmission switch	DC 8～28V
E860-DTU(8080-400SL22)-V2	5km	8-way DI and 8-way DO switching value synchronous transmission switch	DC 8～28V
E860-DTU(4040-400SL22)-V2	5km	4-way DI and 4-way DO switching value synchronous transmission switch	DC 8～28V
E860-DTU(2020-400SL22)-V2	5km	2-way DI and 2-way DO switching value synchronous transmission switch	DC 8～28V
E860-DTU(1010-400SL22)-V2	5km	1-way DI and 1-way DO switching value synchronous transmission switch	DC 8～28V
E860-DTU(8080-4G)-V2	4G unlimited distance	8-way DI and 8-way DO switching value synchronous transmission switch	DC 8～28V
E860-DTU(4040-4G)-V2	4G unlimited distance	4-way DI and 4-way DO switching value synchronous transmission switch	DC 8～28V
E860-DTU(2020-4G)-V2	4G unlimited distance	2-way DI and 2-way DO switching value synchronous transmission switch	DC 8～28V
E860-DTU(1010-4G)-V2	4G unlimited distance	1-way DI and 1-way DO switching value synchronous transmission switch	DC 8～28V

Core Features: The Smart Choice for Wireless Control

1. LoRa Long-Distance Transmission Technology

The E860-DTU utilizes advanced LoRa (Long-Range, Low-Power Wireless) technology, enabling ultra-long-range communication in the 433MHz frequency band. In open air environments, transmission distances reach up to 10 kilometers, far exceeding traditional wireless technologies. Even in obstructed environments, it maintains a stable connection, effectively solving challenges such as difficult wiring and dispersed equipment in industrial sites.

2. Bidirectional I/O Control and Monitoring

The device supports 8 digital inputs and 8 relay outputs, achieving complete “input-processing-output” closed-loop control:

• 8 DI inputs: Connect to various switches, sensors, and other devices for real-time device status monitoring.
• 8 DO outputs: Control the start and stop of external devices such as motors, valves, and lights via relays.

3. Industrial-Grade Reliable Design

Wide operating temperature range: -40°C to +85°C, suitable for harsh industrial environments.

• Wide voltage supply: DC 8-28V input, compatible with a variety of industrial power supplies.
• Conformal coating: The entire device is sprayed with anti-mold, moisture-proof, and salt spray-proof coating to extend device life.
• High-capacity relays: 10A contact capacity, capable of directly controlling high-power devices.

4. Convenient Installation and Configuration

• DIN-Rail Mounting: Standard DIN-Rail mounting allows for easy installation and removal.
• Intuitive Indicators: Each port features an LED indicator for at-a-glance status.
• Configuration Reset Button: Long press to restore factory settings or enter pairing mode.
• Plug-and-Play: No complex configuration required, simplifying deployment.

5. Flexible and diverse product line

We offer a variety of specifications to meet diverse user needs:

• Different I/O combinations: From 1 to 8 DI/DO combinations, meeting different control scales
• Different transmission methods: Supports LoRa (400/900 MHz bands) and 4G wireless transmission
• Different LoRa frequency bands: 400/900 MHz bands available

Typical Application Scenarios: The Infinite Possibilities of Wireless Control

1. Industrial Automation Control Systems

• In large-scale factories, mining areas, oil fields, and other scenarios, where equipment is widely distributed and cabling costs are high, the E860-DTU easily enables:
• Equipment Status Monitoring: Collecting equipment start/stop signals, fault signals, etc.
• Remote Control Execution: Controlling motor start/stop, valve opening/closing, etc.
• Distributed Control: Building distributed I/O systems for centralized management of distributed equipment

2. Smart Agriculture and Environmental Monitoring

In agricultural greenhouses, farms, and environmental monitoring stations:

• Environmental Parameter Collection: Connecting temperature, humidity, light, and gas sensors
• Intelligent Equipment Control: Automatically controlling ventilation, irrigation, lighting, and other equipment based on collected data.
• Remote Monitoring: Suitable for large-scale farms and farms

3. Smart Cities and Public Facilities

In the management of public facilities such as municipal facilities, streetlights, and surveillance cameras:

• Remote Monitoring: Monitoring the operating status of public facilities
• Centralized Control: Centrally managing equipment distributed throughout the city
• Energy Saving Management: Automatically controlling equipment on/off based on demand to conserve energy

4. Special Environment Applications

In special environments such as high temperature, high humidity, and high corrosion:

• Chemical plants: Equipment control in corrosive environments.
• Outdoor facilities: Streetlights, billboards, surveillance equipment, etc.
• Underground pipeline corridors: Equipment monitoring and control in confined spaces.

Technical Advantages and Value

Significantly Reduced Deployment Costs

• Reduced Wiring Costs: Eliminate the need for extensive cabling, saving on material and construction costs.
• Fast Deployment: Simple equipment installation and commissioning, shortening project cycles.
• Flexible Scalability: Devices can be added or removed at any time based on demand without rewiring.

Improved System Reliability

• Strong Anti-Interference Capability: LoRa Technology offers excellent anti-interference performance.
• Wide Operating Temperature Range: Adapts to harsh environments, ensuring stable system operation.
• Fault Self-Diagnosis: LED indicators allow for quick fault location.

Improved Management Efficiency

• Remote Monitoring: Monitor device status anytime, anywhere.
• Centralized Management: Manage distributed devices from a single control center.
• Data Logging and Analysis: Records device operating data, providing a basis for optimized management.

Create More Application Possibilities

• Intelligent Upgrade: Add remote control capabilities to traditional equipment.
• Automated Transformation: Enable automated equipment operation.
• Data Collection and Analysis: Provide data support for production management.

VI. Buying Guide: Find the Model That’s Best for You

When choosing an E860-DTU, consider the following factors:

1. Choosing Based on Transmission Distance Requirements

• 10km transmission requirements: Choose the 400SL30 series/900SL30 series
• 5km transmission requirements: Choose the 400SL22 series/900SL22 series
• No distance restrictions: Choose the 4G series

2. Choosing Based on I/O Requirements

8 DI channels + 8 DO channels: Choose the 8080 series

4 DI channels + 4 DO channels: Choose the 4040 series

2 DI channels + 2 DO channels: Choose the 2020 series

1 DI channel + 1 DO channel: Choose the 1010 series
